F78R38減速機詳細信息
F78R38減速機
F78R38減速機電機功率：F78R38Y0.12KW減速機,F78R38Y0.18KW減速機,F78R38Y0.25KW減速機,F78R38Y0.37KW減速機,F78R38Y0.55KW減速機,F78R38Y0.75KW減速機（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。
F78R38減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F78R38-Y0.12KW | 2613 | 0.12KW | 0.53r/min | 1820N.m | 104kg | 13000N | 0.80 |
| F78R38-Y0.12KW | 2284 | 0.12KW | 0.60r/min | 1570N.m | 104kg | 15200N | 0.95 |
| F78R38-Y0.12KW | 2029 | 0.12KW | 0.68r/min | 1380N.m | 104kg | 16400N | 1.10 |
| F78R38-Y0.12KW | 1728 | 0.12KW | 0.80r/min | 1180N.m | 104kg | 17500N | 1.25 |
| F78R38-Y0.12KW | 1544 | 0.12KW | 0.89r/min | 1090N.m | 104kg | 17900N | 1.40 |
| F78R38-Y0.12KW | 1354 | 0.12KW | 1.00r/min | 950N.m | 104kg | 18500N | 1.55 |
| F78R38-Y0.12KW | 1200 | 0.12KW | 1.20r/min | 840N.m | 104kg | 18800N | 1.75 |
| F78R38-Y0.12KW | 1053 | 0.12KW | 1.30r/min | 740N.m | 104kg | 19100N | 2.00 |
| F78R38-Y0.12KW | 910 | 0.12KW | 1.50r/min | 630N.m | 104kg | 19400N | 2.40 |
| F78R38-Y0.12KW | 810 | 0.12KW | 1.70r/min | 525N.m | 104kg | 19600N | 2.80 |
| F78R38-Y0.12KW | 710 | 0.12KW | 1.90r/min | 460N.m | 104kg | 19800N | 3.20 |
F78R38減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F78R38-Y0.18KW | 1544 | 0.18KW | 0.86r/min | 1770N.m | 104.5kg | 13500N | 0.85 |
| F78R38-Y0.18KW | 1354 | 0.18KW | 0.98r/min | 1550N.m | 104.5kg | 15300N | 0.95 |
| F78R38-Y0.18KW | 1200 | 0.18KW | 1.10r/min | 1380N.m | 104.5kg | 16500N | 1.10 |
| F78R38-Y0.18KW | 1053 | 0.18KW | 1.20r/min | 1210N.m | 104.5kg | 17400N | 1.25 |
| F78R38-Y0.18KW | 910 | 0.18KW | 1.40r/min | 1030N.m | 104.5kg | 18200N | 1.45 |
| F78R38-Y0.18KW | 810 | 0.18KW | 1.60r/min | 880N.m | 104.5kg | 18700N | 1.70 |
| F78R38-Y0.18KW | 710 | 0.18KW | 1.90r/min | 780N.m | 104.5kg | 19000N | 1.90 |
| F78R38-Y0.18KW | 615 | 0.18KW | 2.20r/min | 690N.m | 104.5kg | 19300N | 2.20 |
F78R38減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F78R38-Y0.25KW | 1053 | 0.25KW | 1.20r/min | 1740N.m | 108.5kg | 13900N | 0.85 |
| F78R38-Y0.25KW | 910 | 0.25KW | 1.40r/min | 1490N.m | 108.5kg | 15700N | 1.00 |
| F78R38-Y0.25KW | 810 | 0.25KW | 1.60r/min | 1290N.m | 108.5kg | 16900N | 1.15 |
| F78R38-Y0.25KW | 710 | 0.25KW | 1.80r/min | 1130N.m | 108.5kg | 17700N | 1.30 |
| F78R38-Y0.25KW | 615 | 0.25KW | 2.10r/min | 1000N.m | 108.5kg | 18300N | 1.50 |
| F78R38-Y0.25KW | 538 | 0.25KW | 2.40r/min | 870N.m | 108.5kg | 18700N | 1.70 |
| F78R38-Y0.25KW | 480 | 0.25KW | 2.70r/min | 775N.m | 108.5kg | 19000N | 1.95 |
| F78R38-Y0.25KW | 413 | 0.25KW | 3.20r/min | 660N.m | 108.5kg | 19400N | 2.30 |
F78R38減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F78R38-Y0.37KW | 810 | 0.37KW | 1.70r/min | 1840N.m | 109kg | 11300N | 0.80 |
| F78R38-Y0.37KW | 710 | 0.37KW | 1.90r/min | 1620N.m | 109kg | 14900N | 0.95 |
| F78R38-Y0.37KW | 615 | 0.37KW | 2.20r/min | 1420N.m | 109kg | 16200N | 1.05 |
| F78R38-Y0.37KW | 538 | 0.37KW | 2.60r/min | 1240N.m | 109kg | 17200N | 1.20 |
| F78R38-Y0.37KW | 480 | 0.37KW | 2.90r/min | 1100N.m | 109kg | 17900N | 1.35 |
| F78R38-Y0.37KW | 413 | 0.37KW | 3.40r/min | 940N.m | 109kg | 18500N | 1.60 |
| F78R38-Y0.37KW | 367 | 0.37KW | 3.80r/min | 840N.m | 109kg | 18900N | 1.80 |
| F78R38-Y0.37KW | 323 | 0.37KW | 4.30r/min | 750N.m | 109kg | 19100N | 2.00 |
F78R38減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F78R38-Y0.55KW | 480 | 0.55KW | 2.90r/min | 1660N.m | 113.5kg | 14500N | 0.90 |
| F78R38-Y0.55KW | 413 | 0.55KW | 3.40r/min | 1420N.m | 113.5kg | 16200N | 1.05 |
| F78R38-Y0.55KW | 367 | 0.55KW | 3.80r/min | 1270N.m | 113.5kg | 17100N | 1.20 |
| F78R38-Y0.55KW | 323 | 0.55KW | 4.30r/min | 1120N.m | 113.5kg | 17800N | 1.35 |
F78R38減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| F78R38-Y0.75KW | 367 | 0.75KW | 3.90r/min | 1680N.m | 114.5kg | 14400N | 0.90 |
| F78R38-Y0.75KW | 323 | 0.75KW | 4.40r/min | 1480N.m | 114.5kg | 15800N | 1.00 |
| F78R38-Y0.75KW | 280 | 0.75KW | 5.10r/min | 1280N.m | 114.5kg | 17000N | 1.15 |
F78R38減速器減速比：280比齒輪減速馬達,323比減速器,367比減速器,413比減速器,480比減速器,538比減速器,615比減速器,710比減速器,810比減速器,910比減速器,1053比減速器,1200比減速器,1354比減速器,1544比減速器,1728比減速器,2029比減速器,2284比減速器,2613比減速器。

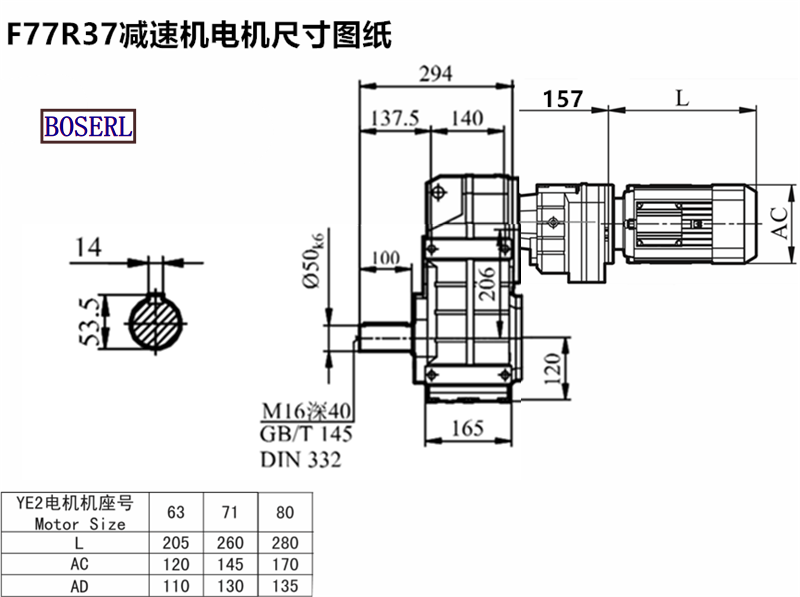

F78R38減速機電機安裝尺寸：輸出軸Φ50+鍵3.5（可定做），高431*寬270*長487（帶輸出軸）
F78R38減速電機輸出轉數：0.53轉減速電機,0.6轉減速電機,0.68轉減速電機,0.8轉減速電機,0.86轉減速電機,0.89轉減速電機,0.98轉減速電機,1轉減速電機,1.1轉減速電機,1.2轉減速電機,1.3轉減速電機,1.4轉減速電機,1.5轉減速電機,1.6轉減速電機,1.7轉減速電機,1.8轉減速電機,1.9轉減速電機,2.1轉減速電機,2.2轉減速電機,2.4轉平行軸斜齒輪減速機,2.6轉減速電機,2.7轉減速電機,2.9轉減速電機,3.2轉減速電機,3.4轉減速電機,3.8轉減速電機,3.9轉減速電機,4.3轉減速電機,4.4轉減速電機,5.1轉減速電機。減速器生產廠家
F78R38減速箱電機輸出扭矩：460N.m減速箱,525N.m減速箱,630N.m減速箱,660N.m減速箱,690N.m減速箱,740N.m減速箱,750N.m減速箱,775N.m減速箱,780N.m減速箱,840N.m減速箱,870N.m減速箱,880N.m減速箱,940N.m減速箱,950N.m減速箱,1000N.m減速箱,1030N.m減速箱,1090N.m減速箱,1100N.m減速箱,1120N.m減速箱,1130N.m減速箱,1180N.m減速箱,1210N.m減速箱,1240N.m減速箱,1270N.m減速箱,1280N.m減速箱,1290N.m減速箱,1380N.m減速箱,1420N.m減速箱,1480N.m減速箱,1490N.m減速箱,1550N.m減速箱,1570N.m減速箱,1620N.m減速箱,1660N.m減速箱,1680N.m減速箱,1740N.m減速箱,1770N.m減速箱,1820N.m減速箱,1840N.m減速箱。

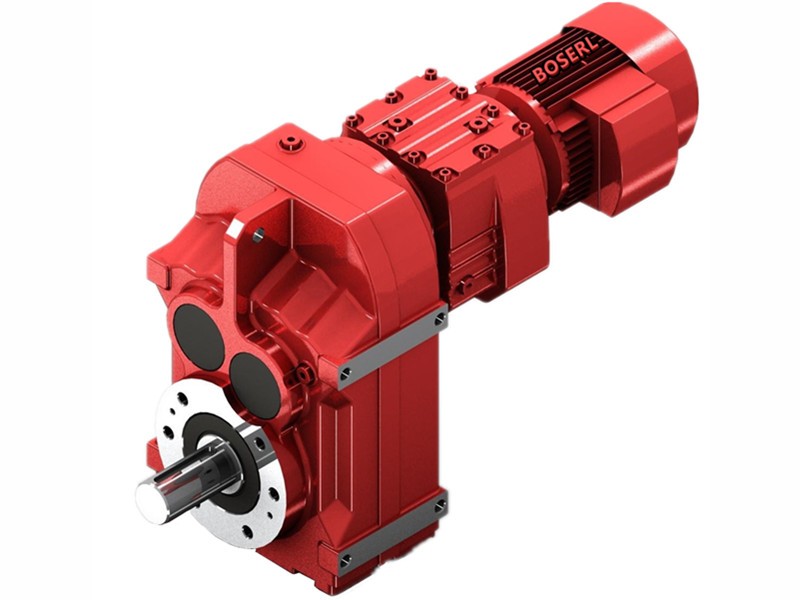

F78R38減速機電機各種輸出實物圖：
F78R38減速馬達型號：
FHZ77R37DM63L4,FHZ77R37DM63M4,FHZ77R37DM63MS4,FHZ77R37DM63S4,FHZ77R37DM71D4,FHZ77R37DM71M4,FHZ77R37DM71MS4,FHZ77R37DM71S4,FHZ77R37DM80K4,FHZ77R37DM80M4,FHZ77R37DM80MK4,FHZ77R37DM80N4,FHZ77R37DM80S4,FHZ77R37DR63L4,FHZ77R37DR63M4,FHZ77R37DR63MS4,FHZ77R37DR63S4,FHZ77R37DR71D4,FHZ77R37DR71M4,FHZ77R37DR71MS4,FHZ77R37DR71S4,FHZ77R37DR80K4,FHZ77R37DR80M4,FHZ77R37DR80MK4,FHZ77R37DR80N4,FHZ77R37DR80S4,FHZ77R37DRE63L4,FHZ77R37DRE63M4,FHZ77R37DRE63MS4,FHZ77R37DRE63S4,FHZ77R37DRE71D4,FHZ77R37DRE71M4,FHZ77R37DRE71MS4,FHZ77R37DRE71S4,FHZ77R37DRE80K4,FHZ77R37DRE80M4,FHZ77R37DRE80MK4,FHZ77R37DRE80N4,FHZ77R37DRE80S4,FHZ77R37DRN63L4,FHZ77R37DRN63M4,FHZ77R37DRN63MS4,FHZ77R37DRN63S4,FHZ77R37DRN71D4,FHZ77R37DRN71M4,FHZ77R37DRN71MS4,FHZ77R37DRN71S4,FHZ77R37DRN80K4,FHZ77R37DRN80M4,FHZ77R37DRN80MK4,FHZ77R37DRN80N4,FHZ77R37DRN80S4,FHZ77R37DRS63L4,FHZ77R37DRS63M4,FHZ77R37DRS63MS4,FHZ77R37DRS63S4,FHZ77R37DRS71D4,FHZ77R37DRS71M4,FHZ77R37DRS71MS4,FHZ77R37DRS71S4,FHZ77R37DRS80K4,FHZ77R37DRS80M4,FHZ77R37DRS80MK4,FHZ77R37DRS80N4,FHZ77R37DRS80S4,FHZ77R37DT63L4,FHZ77R37DT63M4,FHZ77R37DT63MS4,FHZ77R37DT63S4,FHZ77R37DT71D4,FHZ77R37DT71M4,FHZ77R37DT71MS4,FHZ77R37DT71S4,FHZ77R37DT80K4,FHZ77R37DT80M4,FHZ77R37DT80MK4,FHZ77R37DT80N4,FHZ77R37DT80S4,FHZ77R37DV63L4,FHZ77R37DV63M4,FHZ77R37DV63MS4,FHZ77R37DV63S4,FHZ77R37DV71D4,FHZ77R37DV71M4,FHZ77R37DV71MS4,FHZ77R37DV71S4,FHZ77R37DV80K4,FHZ77R37DV80M4,FHZ77R37DV80MK4,FHZ77R37DV80N4,FHZ77R37DV80S4,FHZ77R37DVE63L4,FHZ77R37DVE63M4,FHZ77R37DVE63MS4,FHZ77R37DVE63S4,FHZ77R37DVE71D4,FHZ77R37DVE71M4,FHZ77R37DVE71MS4,FHZ77R37DVE71S4,FHZ77R37DVE80K4,FHZ77R37DVE80M4,FHZ77R37DVE80MK4,FHZ77R37DVE80N4,FHZ77R37DVE80S4,FHZ77RF37-Y0.12KW,FHZ77RF37-Y0.18KW,FHZ77RF37-Y0.25KW,FHZ77RF37-Y0.37KW,FHZ77RF37-Y0.55KW,FHZ77RF37-Y0.75KW,FHZ77RF37-Y63M4,FHZ77RF37-Y71M4,FHZ77RF37-Y80M4,FHZ77RF37-YEJ0.12KW,FHZ77RF37-YEJ0.18KW,FHZ77RF37-YEJ0.25KW,FHZ77RF37-YEJ0.37KW,FHZ77RF37-YEJ0.55KW,FHZ77RF37-YEJ0.75KW,FHZ77RF37-YEJ63M4,FHZ77RF37-YEJ71M4,FHZ77RF37-YEJ80M4,FHZ77RF37-YVP0.12KW,FHZ77RF37-YVP0.18KW,FHZ77RF37-YVP0.25KW,FHZ77RF37-YVP0.37KW,FHZ77RF37-YVP0.55KW,FHZ77RF37-YVP0.75KW,FHZ77RF37-YVP63M4,FHZ77RF37-YVP71M4,FHZ77RF37-YVP80M4,FHZ77RF37-YVPEJ0.12KW,FHZ77RF37-YVPEJ0.18KW,FHZ77RF37-YVPEJ0.25KW,FHZ77RF37-YVPEJ0.37KW,FHZ77RF37-YVPEJ0.55KW,FHZ77RF37-YVPEJ0.75KW,FHZ77RF37-YVPEJ63M4,FHZ77RF37-YVPEJ71M4,FHZ77RF37-YVPEJ80M4,FVZ77R37DM63L4,FVZ77R37DM63M4,FVZ77R37DM63MS4,FVZ77R37DM63S4,FVZ77R37DM71D4,FVZ77R37DM71M4,FVZ77R37DM71MS4,FVZ77R37DM71S4,FVZ77R37DM80K4,FVZ77R37DM80M4,FVZ77R37DM80MK4,FVZ77R37DM80N4,FVZ77R37DM80S4,FVZ77R37DR63L4,FVZ77R37DR63M4,FVZ77R37DR63MS4,FVZ77R37DR63S4,FVZ77R37DR71D4,FVZ77R37DR71M4,FVZ77R37DR71MS4,FVZ77R37DR71S4,FVZ77R37DR80K4,FVZ77R37DR80M4,FVZ77R37DR80MK4,FVZ77R37DR80N4,FVZ77R37DR80S4,FVZ77R37DRE63L4,FVZ77R37DRE63M4,FVZ77R37DRE63MS4,FVZ77R37DRE63S4,FVZ77R37DRE71D4,FVZ77R37DRE71M4,FVZ77R37DRE71MS4,FVZ77R37DRE71S4,FVZ77R37DRE80K4,FVZ77R37DRE80M4,FVZ77R37DRE80MK4,FVZ77R37DRE80N4,FVZ77R37DRE80S4,FVZ77R37DRN63L4,FVZ77R37DRN63M4,FVZ77R37DRN63MS4,FVZ77R37DRN63S4,FVZ77R37DRN71D4,FVZ77R37DRN71M4,FVZ77R37DRN71MS4,FVZ77R37DRN71S4,FVZ77R37DRN80K4,FVZ77R37DRN80M4,FVZ77R37DRN80MK4,FVZ77R37DRN80N4,FVZ77R37DRN80S4,FVZ77R37DRS63L4,FVZ77R37DRS63M4,FVZ77R37DRS63MS4,FVZ77R37DRS63S4,FVZ77R37DRS71D4,FVZ77R37DRS71M4,FVZ77R37DRS71MS4,FVZ77R37DRS71S4,FVZ77R37DRS80K4,FVZ77R37DRS80M4,FVZ77R37DRS80MK4,FVZ77R37DRS80N4,FVZ77R37DRS80S4,FVZ77R37DT63L4,FVZ77R37DT63M4,FVZ77R37DT63MS4,FVZ77R37DT63S4,FVZ77R37DT71D4,FVZ77R37DT71M4,FVZ77R37DT71MS4,FVZ77R37DT71S4,FVZ77R37DT80K4,FVZ77R37DT80M4,FVZ77R37DT80MK4,FVZ77R37DT80N4,FVZ77R37DT80S4,FVZ77R37DV63L4,FVZ77R37DV63M4,FVZ77R37DV63MS4,FVZ77R37DV63S4,FVZ77R37DV71D4,FVZ77R37DV71M4,FVZ77R37DV71MS4,FVZ77R37DV71S4,FVZ77R37DV80K4,FVZ77R37DV80M4,FVZ77R37DV80MK4,FVZ77R37DV80N4,FVZ77R37DV80S4,FVZ77R37DVE63L4,FVZ77R37DVE63M4,FVZ77R37DVE63MS4,FVZ77R37DVE63S4,FVZ77R37DVE71D4,FVZ77R37DVE71M4,FVZ77R37DVE71MS4,FVZ77R37DVE71S4,FVZ77R37DVE80K4,FVZ77R37DVE80M4,FVZ77R37DVE80MK4,FVZ77R37DVE80N4,FVZ77R37DVE80S4,FVZ77RF37-Y0.12KW,FVZ77RF37-Y0.18KW,FVZ77RF37-Y0.25KW,FVZ77RF37-Y0.37KW,FVZ77RF37-Y0.55KW,FVZ77RF37-Y0.75KW,FVZ77RF37-Y63M4,FVZ77RF37-Y71M4,FVZ77RF37-Y80M4,FVZ77RF37-YEJ0.12KW,FVZ77RF37-YEJ0.18KW,FVZ77RF37-YEJ0.25KW,FVZ77RF37-YEJ0.37KW,FVZ77RF37-YEJ0.55KW,FVZ77RF37-YEJ0.75KW,FVZ77RF37-YEJ63M4,FVZ77RF37-YEJ71M4,FVZ77RF37-YEJ80M4,FVZ77RF37-YVP0.12KW,FVZ77RF37-YVP0.18KW,FVZ77RF37-YVP0.25KW,FVZ77RF37-YVP0.37KW,FVZ77RF37-YVP0.55KW,FVZ77RF37-YVP0.75KW,FVZ77RF37-YVP63M4,FVZ77RF37-YVP71M4,FVZ77RF37-YVP80M4,FVZ77RF37-YVPEJ0.12KW,FVZ77RF37-YVPEJ0.18KW,FVZ77RF37-YVPEJ0.25KW,FVZ77RF37-YVPEJ0.37KW,FVZ77RF37-YVPEJ0.55KW,FVZ77RF37-YVPEJ0.75KW,FVZ77RF37-YVPEJ63M4,FVZ77RF37-YVPEJ71M4,FVZ77RF37-YVPEJ80M4,FAZ77R37DM63L4,FAZ77R37DM63M4,FAZ77R37DM63MS4,FAZ77R37DM63S4,FAZ77R37DM71D4,FAZ77R37DM71M4,FAZ77R37DM71MS4,FAZ77R37DM71S4,FAZ77R37DM80K4,FAZ77R37DM80M4,FAZ77R37DM80MK4,FAZ77R37DM80N4,FAZ77R37DM80S4,FAZ77R37DR63L4,FAZ77R37DR63M4,FAZ77R37DR63MS4,FAZ77R37DR63S4,FAZ77R37DR71D4,FAZ77R37DR71M4,FAZ77R37DR71MS4,FAZ77R37DR71S4,FAZ77R37DR80K4,FAZ77R37DR80M4,FAZ77R37DR80MK4,FAZ77R37DR80N4,FAZ77R37DR80S4,FAZ77R37DRE63L4,FAZ77R37DRE63M4,FAZ77R37DRE63MS4,FAZ77R37DRE63S4,FAZ77R37DRE71D4,FAZ77R37DRE71M4,FAZ77R37DRE71MS4,FAZ77R37DRE71S4,FAZ77R37DRE80K4,FAZ77R37DRE80M4,FAZ77R37DRE80MK4,FAZ77R37DRE80N4,FAZ77R37DRE80S4,FAZ77R37DRN63L4,FAZ77R37DRN63M4,FAZ77R37DRN63MS4,FAZ77R37DRN63S4,FAZ77R37DRN71D4,FAZ77R37DRN71M4,FAZ77R37DRN71MS4,FAZ77R37DRN71S4,FAZ77R37DRN80K4,FAZ77R37DRN80M4,FAZ77R37DRN80MK4,FAZ77R37DRN80N4,FAZ77R37DRN80S4,FAZ77R37DRS63L4,FAZ77R37DRS63M4,FAZ77R37DRS63MS4,FAZ77R37DRS63S4,FAZ77R37DRS71D4,FAZ77R37DRS71M4,FAZ77R37DRS71MS4,FAZ77R37DRS71S4,FAZ77R37DRS80K4,FAZ77R37DRS80M4,FAZ77R37DRS80MK4,FAZ77R37DRS80N4,FAZ77R37DRS80S4,FAZ77R37DT63L4,FAZ77R37DT63M4,FAZ77R37DT63MS4,FAZ77R37DT63S4,FAZ77R37DT71D4,FAZ77R37DT71M4,FAZ77R37DT71MS4,FAZ77R37DT71S4,FAZ77R37DT80K4,FAZ77R37DT80M4,FAZ77R37DT80MK4,FAZ77R37DT80N4,FAZ77R37DT80S4,FAZ77R37DV63L4,FAZ77R37DV63M4,FAZ77R37DV63MS4,FAZ77R37DV63S4,FAZ77R37DV71D4,FAZ77R37DV71M4,FAZ77R37DV71MS4,FAZ77R37DV71S4,FAZ77R37DV80K4,FAZ77R37DV80M4,FAZ77R37DV80MK4,FAZ77R37DV80N4,FAZ77R37DV80S4,FAZ77R37DVE63L4,FAZ77R37DVE63M4,FAZ77R37DVE63MS4,FAZ77R37DVE63S4,FAZ77R37DVE71D4,FAZ77R37DVE71M4,FAZ77R37DVE71MS4,FAZ77R37DVE71S4,FAZ77R37DVE80K4,FAZ77R37DVE80M4,FAZ77R37DVE80MK4,FAZ77R37DVE80N4,FAZ77R37DVE80S4,FAZ77RF37-Y0.12KW,FAZ77RF37-Y0.18KW,FAZ77RF37-Y0.25KW,FAZ77RF37-Y0.37KW,FAZ77RF37-Y0.55KW,FAZ77RF37-Y0.75KW,FAZ77RF37-Y63M4,FAZ77RF37-Y71M4,FAZ77RF37-Y80M4,FAZ77RF37-YEJ0.12KW,FAZ77RF37-YEJ0.18KW,FAZ77RF37-YEJ0.25KW,FAZ77RF37-YEJ0.37KW,FAZ77RF37-YEJ0.55KW,FAZ77RF37-YEJ0.75KW,FAZ77RF37-YEJ63M4,FAZ77RF37-YEJ71M4,FAZ77RF37-YEJ80M4,FAZ77RF37-YVP0.12KW,FAZ77RF37-YVP0.18KW,FAZ77RF37-YVP0.25KW,FAZ77RF37-YVP0.37KW,FAZ77RF37-YVP0.55KW,FAZ77RF37-YVP0.75KW,FAZ77RF37-YVP63M4,FAZ77RF37-YVP71M4,FAZ77RF37-YVP80M4,FAZ77RF37-YVPEJ0.12KW,FAZ77RF37-YVPEJ0.18KW,FAZ77RF37-YVPEJ0.25KW,FAZ77RF37-YVPEJ0.37KW,FAZ77RF37-YVPEJ0.55KW,FAZ77RF37-YVPEJ0.75KW,FAZ77RF37-YVPEJ63M4,FAZ77RF37-YVPEJ71M4,FAZ77RF37-YVPEJ80M4。
F78R38減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.szweilun.cn/product/list-fxiliejiansuji-cn.html
推薦型號：F78減速機
關鍵詞:GF型配減速器的電機一體式_F系列減速機_F系列減速器_減速機配電機_配減速器的電機_配減速機的電機_電機配減速機_GF系列減速機_F型減速機_F型平行軸斜齒輪減速機_減速器配電機
F系列齒輪減速馬達型號：F28減速機,F38減速機,F48減速機,F68減速機,F78減速機,F88減速機,F98減速機,F108減速機,F128減速機,F158減速機
F系列電動機減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
