R48減速電機詳細信息
R48減速電機
訂購熱線：13360667204
R48減速電機功率計算公式：齒輪減速馬達
軌道車參數：輥輪直徑100，承重2噸，駛行一分鐘35米
35米÷（0.1輥輪直徑×3.14）=111.46轉每分鐘
2噸換算成N=20000N
20000×0.05輥輪半徑×0.3橡膠輪水泥路的摩擦系數=60N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍60×2=120N.m
電機轉數1400÷輸出轉數111.46=12.56比
120N.m輸出扭矩÷12.56比=9.55N.m電機扭矩
9.55N.m電機扭矩換算成功率1.5KW以上
對應的R48減速機型號參數：
型號：R48-B1.5KW
減速比：12.54
輸出轉數：114轉每分鐘
輸出扭矩：126N.m
安全系數：2.0

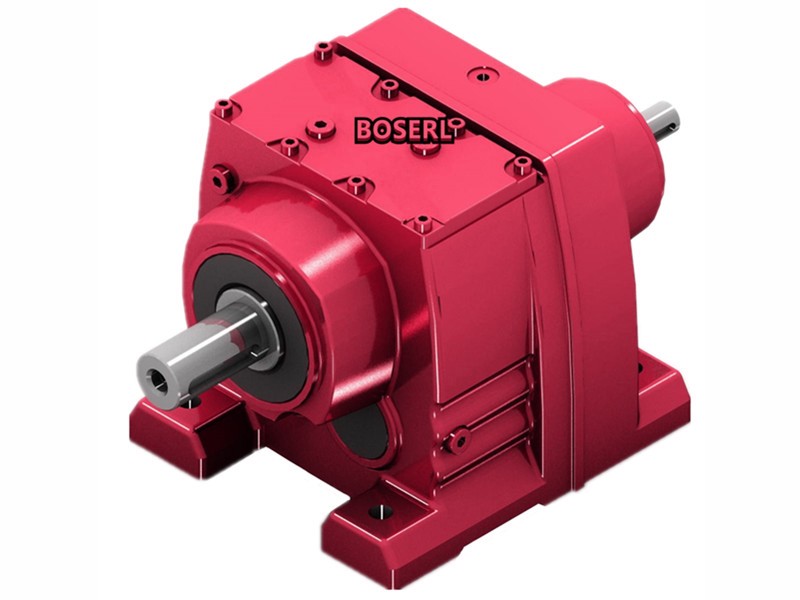

R48減速機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機
R48斜齒輪硬齒面減速機型號：

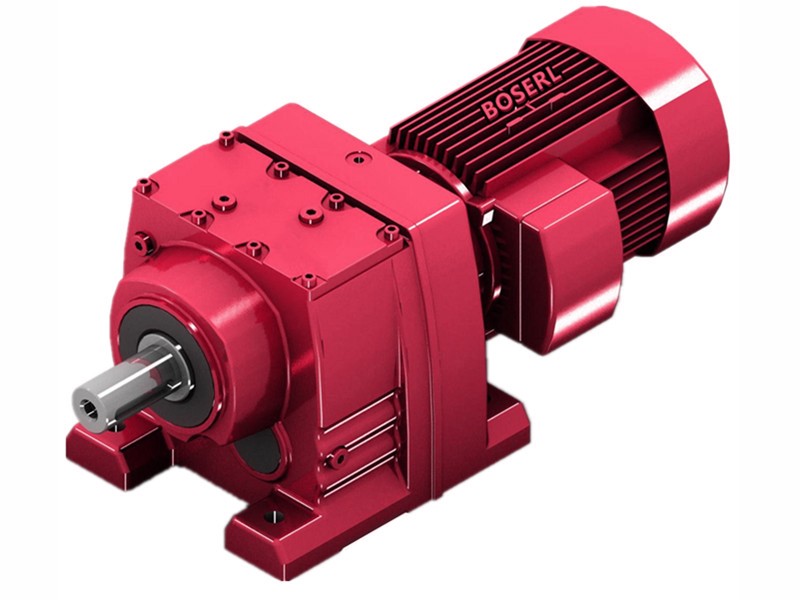

R48減速電機型號參數：同軸斜齒輪減速電機
R48減速機配0.12KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R47F-Y0.12KW | 0.12KW | 7.80rpm | 147N.m | 2.00 |
| R47F-Y0.12KW | 0.12KW | 8.50rpm | 135N.m | 2.20 |
| R47F-Y0.12KW | 0.12KW | 9.90rpm | 116N.m | 2.60 |
| R47F-Y0.12KW | 0.12KW | 11.0rpm | 101N.m | 3.00 |
| R47F-Y0.12KW | 0.12KW | 12.0rpm | 95N.m | 3.20 |
| R47F-Y0.12KW | 0.12KW | 14.0rpm | 84N.m | 3.60 |
| R47F-Y0.12KW | 0.12KW | 15.0rpm | 78N.m | 3.90 |
R48減速機配0.18KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R47F-Y0.18KW | 0.18KW | 7.50rpm | 230N.m | 1.30 |
| R47F-Y0.18KW | 0.18KW | 8.10rpm | 210N.m | 1.40 |
| R47F-Y0.18KW | 0.18KW | 9.40rpm | 182N.m | 1.65 |
| R47F-Y0.18KW | 0.18KW | 11.0rpm | 159N.m | 1.90 |
| R47F-Y0.18KW | 0.18KW | 12.0rpm | 149N.m | 2.00 |
| R47F-Y0.18KW | 0.18KW | 13.0rpm | 131N.m | 2.30 |
| R47F-Y0.18KW | 0.18KW | 14.0rpm | 122N.m | 2.50 |
| R47F-Y0.18KW | 0.18KW | 16.0rpm | 111N.m | 2.70 |
| R47F-Y0.18KW | 0.18KW | 17.0rpm | 99N.m | 3.00 |
R48減速機配0.25KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R47F-Y0.25KW | 0.25KW | 7.40rpm | 320N.m | 0.90 |
| R47F-Y0.25KW | 0.25KW | 8.00rpm | 295N.m | 1.00 |
| R47F-Y0.25KW | 0.25KW | 9.30rpm | 255N.m | 1.15 |
| R47F-Y0.25KW | 0.25KW | 11.0rpm | 220N.m | 1.35 |
| R47F-Y0.25KW | 0.25KW | 11.0rpm | 205N.m | 1.45 |
| R47F-Y0.25KW | 0.25KW | 13.0rpm | 185N.m | 1.60 |
| R47F-Y0.25KW | 0.25KW | 14.0rpm | 172N.m | 1.75 |
| R47F-Y0.25KW | 0.25KW | 15.0rpm | 156N.m | 1.90 |
| R47F-Y0.25KW | 0.25KW | 17.0rpm | 140N.m | 2.10 |
| R47F-Y0.25KW | 0.25KW | 19.0rpm | 126N.m | 2.40 |
| R47F-Y0.25KW | 0.25KW | 20.0rpm | 118N.m | 2.50 |
| R47F-Y0.25KW | 0.25KW | 23.0rpm | 104N.m | 2.90 |
| R47F-Y0.25KW | 0.25KW | 25.0rpm | 97N.m | 3.10 |
| R47F-Y0.25KW | 0.25KW | 27.0rpm | 88N.m | 3.40 |
R48減速機配0.37KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R47F-Y0.37KW | 0.37KW | 9.90rpm | 355N.m | 0.85 |
| R47F-Y0.37KW | 0.37KW | 11.0rpm | 310N.m | 0.95 |
| R47F-Y0.37KW | 0.37KW | 12.0rpm | 290N.m | 1.05 |
| R47F-Y0.37KW | 0.37KW | 14.0rpm | 255N.m | 1.15 |
| R47F-Y0.37KW | 0.37KW | 15.0rpm | 235N.m | 1.25 |
| R47F-Y0.37KW | 0.37KW | 16.0rpm | 215N.m | 1.40 |
| R47F-Y0.37KW | 0.37KW | 18.0rpm | 195N.m | 1.55 |
| R47F-Y0.37KW | 0.37KW | 20.0rpm | 176N.m | 1.70 |
| R47F-Y0.37KW | 0.37KW | 21.0rpm | 164N.m | 1.80 |
| R47F-Y0.37KW | 0.37KW | 24.0rpm | 145N.m | 2.10 |
| R47F-Y0.37KW | 0.37KW | 26.0rpm | 135N.m | 2.20 |
| R47F-Y0.37KW | 0.37KW | 29.0rpm | 122N.m | 2.40 |
| R47F-Y0.37KW | 0.37KW | 32.0rpm | 110N.m | 2.70 |
| R47F-Y0.37KW | 0.37KW | 37.0rpm | 94N.m | 3.20 |
| R47F-Y0.37KW | 0.37KW | 40.0rpm | 89N.m | 3.40 |
| R47F-Y0.37KW | 0.37KW | 41.0rpm | 86N.m | 2.80 |
| R47F-Y0.37KW | 0.37KW | 44.0rpm | 80N.m | 2.80 |
| R47F-Y0.37KW | 0.37KW | 52.0rpm | 68N.m | 4.40 |
| R47F-Y0.37KW | 0.37KW | 59.0rpm | 60N.m | 5.00 |
| R47F-Y0.37KW | 0.37KW | 63.0rpm | 56N.m | 5.40 |
R48減速機配0.55KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R47F-Y0.55KW | 0.55KW | 15.0rpm | 355N.m | 0.85 |
| R47F-Y0.55KW | 0.55KW | 16.0rpm | 320N.m | 0.95 |
| R47F-Y0.55KW | 0.55KW | 18.0rpm | 290N.m | 1.05 |
| R47F-Y0.55KW | 0.55KW | 20.0rpm | 260N.m | 1.15 |
| R47F-Y0.55KW | 0.55KW | 21.0rpm | 240N.m | 1.25 |
| R47F-Y0.55KW | 0.55KW | 24.0rpm | 215N.m | 1.40 |
| R47F-Y0.55KW | 0.55KW | 26.0rpm | 200N.m | 1.50 |
| R47F-Y0.55KW | 0.55KW | 29.0rpm | 182N.m | 1.65 |
| R47F-Y0.55KW | 0.55KW | 32.0rpm | 163N.m | 1.85 |
| R47F-Y0.55KW | 0.55KW | 37.0rpm | 140N.m | 2.10 |
| R47F-Y0.55KW | 0.55KW | 40.0rpm | 132N.m | 2.30 |
| R47F-Y0.55KW | 0.55KW | 46.0rpm | 114N.m | 2.60 |
| R47F-Y0.55KW | 0.55KW | 52.0rpm | 102N.m | 3.00 |
| R47F-Y0.55KW | 0.55KW | 59.0rpm | 89N.m | 3.40 |
| R47F-Y0.55KW | 0.55KW | 63.0rpm | 83N.m | 3.60 |
R48減速機配0.75KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R47F-Y0.75KW | 0.75KW | 21.0rpm | 340N.m | 0.90 |
| R47F-Y0.75KW | 0.75KW | 22.0rpm | 320N.m | 0.95 |
| R47F-Y0.75KW | 0.75KW | 25.0rpm | 280N.m | 1.05 |
| R47F-Y0.75KW | 0.75KW | 27.0rpm | 260N.m | 1.15 |
| R47F-Y0.75KW | 0.75KW | 30.0rpm | 235N.m | 1.25 |
| R47F-Y0.75KW | 0.75KW | 33.0rpm | 210N.m | 1.40 |
| R47F-Y0.75KW | 0.75KW | 39.0rpm | 184N.m | 1.65 |
| R47F-Y0.75KW | 0.75KW | 41.0rpm | 173N.m | 1.75 |
| R47F-Y0.75KW | 0.75KW | 48.0rpm | 149N.m | 2.00 |
| R47F-Y0.75KW | 0.75KW | 54.0rpm | 133N.m | 2.20 |
| R47F-Y0.75KW | 0.75KW | 61.0rpm | 118N.m | 2.60 |
| R47F-Y0.75KW | 0.75KW | 54.0rpm | 134N.m | 2.20 |
| R47F-Y0.75KW | 0.75KW | 62.0rpm | 116N.m | 2.60 |
| R47F-Y0.75KW | 0.75KW | 66.0rpm | 109N.m | 2.80 |
| R47F-Y0.75KW | 0.75KW | 74.0rpm | 96N.m | 3.10 |
| R47F-Y0.75KW | 0.75KW | 80.0rpm | 89N.m | 3.20 |
| R47F-Y0.75KW | 0.75KW | 88.0rpm | 81N.m | 3.40 |
R48減速機配1.1KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R47F-Y1.1KW | 1.1KW | 30.0rpm | 350N.m | 0.85 |
| R47F-Y1.1KW | 1.1KW | 33.0rpm | 315N.m | 0.95 |
| R47F-Y1.1KW | 1.1KW | 38.0rpm | 270N.m | 1.10 |
| R47F-Y1.1KW | 1.1KW | 41.0rpm | 255N.m | 1.15 |
| R47F-Y1.1KW | 1.1KW | 48.0rpm | 220N.m | 1.35 |
| R47F-Y1.1KW | 1.1KW | 53.0rpm | 198N.m | 1.50 |
| R47F-Y1.1KW | 1.1KW | 60.0rpm | 174N.m | 1.70 |
| R47F-Y1.1KW | 1.1KW | 61.0rpm | 172N.m | 1.75 |
| R47F-Y1.1KW | 1.1KW | 65.0rpm | 161N.m | 1.85 |
| R47F-Y1.1KW | 1.1KW | 74.0rpm | 142N.m | 2.10 |
| R47F-Y1.1KW | 1.1KW | 79.0rpm | 132N.m | 2.20 |
| R47F-Y1.1KW | 1.1KW | 88.0rpm | 120N.m | 2.30 |
| R47F-Y1.1KW | 1.1KW | 98.0rpm | 108N.m | 2.50 |
| R47F-Y1.1KW | 1.1KW | 113rpm | 93N.m | 2.70 |
| R47F-Y1.1KW | 1.1KW | 120rpm | 87N.m | 2.80 |
| R47F-Y1.1KW | 1.1KW | 140rpm | 75N.m | 3.10 |
| R47F-Y1.1KW | 1.1KW | 157rpm | 67N.m | 3.30 |
R48減速機配1.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R47F-Y1.5KW | 1.5KW | 39.0rpm | 365N.m | 0.80 |
| R47F-Y1.5KW | 1.5KW | 41.0rpm | 345N.m | 0.85 |
| R47F-Y1.5KW | 1.5KW | 48.0rpm | 295N.m | 1.00 |
| R47F-Y1.5KW | 1.5KW | 54.0rpm | 265N.m | 1.10 |
| R47F-Y1.5KW | 1.5KW | 61.0rpm | 235N.m | 1.25 |
| R47F-Y1.5KW | 1.5KW | 61.0rpm | 230N.m | 1.30 |
| R47F-Y1.5KW | 1.5KW | 66.0rpm | 215N.m | 1.35 |
| R47F-Y1.5KW | 1.5KW | 74.0rpm | 193N.m | 1.55 |
| R47F-Y1.5KW | 1.5KW | 80.0rpm | 179N.m | 1.60 |
| R47F-Y1.5KW | 1.5KW | 88.0rpm | 162N.m | 1.70 |
| R47F-Y1.5KW | 1.5KW | 98.0rpm | 146N.m | 1.80 |
| R47F-Y1.5KW | 1.5KW | 114rpm | 126N.m | 2.00 |
| R47F-Y1.5KW | 1.5KW | 121rpm | 118N.m | 2.10 |
| R47F-Y1.5KW | 1.5KW | 141rpm | 102N.m | 2.30 |
| R47F-Y1.5KW | 1.5KW | 158rpm | 91N.m | 2.40 |
| R47F-Y1.5KW | 1.5KW | 178rpm | 80N.m | 2.60 |
| R47F-Y1.5KW | 1.5KW | 184rpm | 78N.m | 2.10 |
| R47F-Y1.5KW | 1.5KW | 205rpm | 70N.m | 2.30 |
| R47F-Y1.5KW | 1.5KW | 238rpm | 60N.m | 2.60 |
| R47F-Y1.5KW | 1.5KW | 254rpm | 56N.m | 2.70 |
| R47F-Y1.5KW | 1.5KW | 295rpm | 49N.m | 3.10 |
| R47F-Y1.5KW | 1.5KW | 330rpm | 43N.m | 3.40 |
| R47F-Y1.5KW | 1.5KW | 373rpm | 38N.m | 3.80 |
R48減速機配2.2KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R47F-Y2.2KW | 2.2KW | 74.0rpm | 280N.m | 1.05 |
| R47F-Y2.2KW | 2.2KW | 88.0rpm | 235N.m | 1.15 |
| R47F-Y2.2KW | 2.2KW | 98.0rpm | 210N.m | 1.25 |
| R47F-Y2.2KW | 2.2KW | 114rpm | 185N.m | 1.35 |
| R47F-Y2.2KW | 2.2KW | 121rpm | 174N.m | 1.40 |
| R47F-Y2.2KW | 2.2KW | 140rpm | 150N.m | 1.55 |
| R47F-Y2.2KW | 2.2KW | 157rpm | 134N.m | 1.65 |
| R47F-Y2.2KW | 2.2KW | 178rpm | 118N.m | 1.75 |
| R47F-Y2.2KW | 2.2KW | 184rpm | 114N.m | 1.45 |
| R47F-Y2.2KW | 2.2KW | 205rpm | 103N.m | 1.55 |
| R47F-Y2.2KW | 2.2KW | 238rpm | 88N.m | 1.75 |
| R47F-Y2.2KW | 2.2KW | 253rpm | 83N.m | 1.85 |
| R47F-Y2.2KW | 2.2KW | 294rpm | 72N.m | 2.10 |
| R47F-Y2.2KW | 2.2KW | 329rpm | 64N.m | 2.30 |
| R47F-Y2.2KW | 2.2KW | 372rpm | 56N.m | 2.60 |
R48減速機配3KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R47F-Y3KW | 3KW | 90.0rpm | 315N.m | 0.85 |
| R47F-Y3KW | 3KW | 100rpm | 285N.m | 0.90 |
| R47F-Y3KW | 3KW | 116rpm | 245N.m | 1.00 |
| R47F-Y3KW | 3KW | 123rpm | 230N.m | 1.05 |
| R47F-Y3KW | 3KW | 143rpm | 200N.m | 1.15 |
| R47F-Y3KW | 3KW | 160rpm | 178N.m | 1.25 |
| R47F-Y3KW | 3KW | 182rpm | 158N.m | 1.30 |
| R47F-Y3KW | 3KW | 188rpm | 153N.m | 1.05 |
| R47F-Y3KW | 3KW | 209rpm | 137N.m | 1.15 |
| R47F-Y3KW | 3KW | 243rpm | 118N.m | 1.30 |
| R47F-Y3KW | 3KW | 258rpm | 111N.m | 1.40 |
| R47F-Y3KW | 3KW | 300rpm | 96N.m | 1.55 |
| R47F-Y3KW | 3KW | 336rpm | 85N.m | 1.70 |
| R47F-Y3KW | 3KW | 380rpm | 75N.m | 1.90 |
R48減速機配4KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R47F-Y4KW | 4KW | 144rpm | 265N.m | 0.85 |
| R47F-Y4KW | 4KW | 161rpm | 235N.m | 0.95 |
| R47F-Y4KW | 4KW | 182rpm | 205N.m | 1.00 |
| R47F-Y4KW | 4KW | 210rpm | 182N.m | 0.85 |
| R47F-Y4KW | 4KW | 243rpm | 157N.m | 1.00 |
| R47F-Y4KW | 4KW | 259rpm | 148N.m | 1.05 |
| R47F-Y4KW | 4KW | 301rpm | 127N.m | 1.20 |
| R47F-Y4KW | 4KW | 337rpm | 113N.m | 1.30 |
| R47F-Y4KW | 4KW | 381rpm | 100N.m | 1.45 |
R48減速機配5.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| R47F-Y5.5KW | 5.5KW | 300rpm | 175N.m | 0.85 |
| R47F-Y5.5KW | 5.5KW | 336rpm | 156N.m | 0.95 |
| R47F-Y5.5KW | 5.5KW | 380rpm | 138N.m | 1.05 |
R48減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R48減速機
關鍵詞:同向減速機臥式配電機一體式_R系列減速電機_R系列減速機_R系列減速器_同向減速器_GR型減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機
R系列減速機型號：R18減速機,R28減速機,R38減速機,R48減速機,R58減速機,R68減速機,R78減速機,R88減速機,R98減速機,R108減速機,R138減速機,R148減速機,R168減速機
R系列齒輪減速馬達可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: R48減速電機 R47斜齒輪硬齒面減速機 R47減速機功率 R47減速機基座尺寸 R47減速機模型 R47減速機型號參數
