RF38減速電機詳細信息
RF38減速電機
訂購熱線：13360667204
RF38減速電機功率計算公式：齒輪減速馬達
電軌車參數：鏈輪直徑85，帶動0.3噸，每分鐘運行41米
41米÷（0.085鏈輪直徑×3.14）=153.61轉每分鐘
0.3噸換算成N=3000N
3000×0.0425鏈輪半徑×0.3橡膠輪水泥路的摩擦系數=38.25N.m
通常確保萬無一失，我們會把輸出扭矩放大兩倍38.25×2=76.5N.m
電機轉數1400÷輸出轉數153.61=9.11比
76.5N.m輸出扭矩÷9.11比=8.4N.m電機扭矩
8.4N.m電機扭矩換算成功率1.33KW左右
對應的RF38減速機型號參數：
型號：RF38-BEJ1.5KW
減速比：10.13
輸出轉數：141轉每分鐘
輸出扭矩：101N.m
安全系數：1.2
RF38減速機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）RF系列減速機

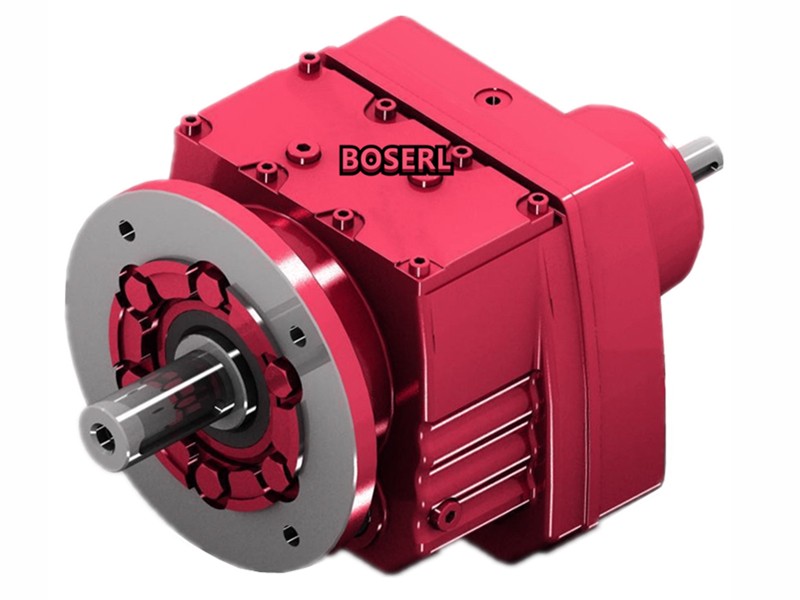

RF38斜齒輪硬齒面減速機型號：

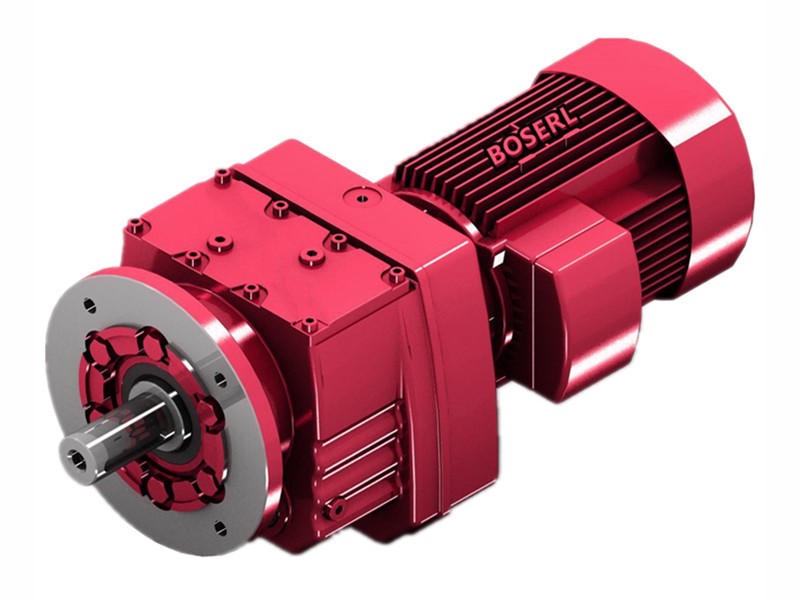

RF38減速電機型號參數：同軸斜齒輪減速電機
RF38減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF38-Y0.12KW | 134.82 | 0.12KW | 14kg | 5750N |
| RF38-Y0.12KW | 123.66 | 0.12KW | 14kg | 5800N |
| RF38-Y0.12KW | 105.28 | 0.12KW | 14kg | 5880N |
| RF38-Y0.12KW | 90.77 | 0.12KW | 14kg | 5930N |
| RF38-Y0.12KW | 84.61 | 0.12KW | 14kg | 5950N |
| RF38-Y0.12KW | 73.96 | 0.12KW | 14kg | 5980N |
RF38減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF38-Y0.18KW | 134.82 | 0.18KW | 14.5kg | 5230N |
| RF38-Y0.18KW | 123.66 | 0.18KW | 14.5kg | 5370N |
| RF38-Y0.18KW | 105.28 | 0.18KW | 14.5kg | 5580N |
| RF38-Y0.18KW | 90.77 | 0.18KW | 14.5kg | 5710N |
| RF38-Y0.18KW | 84.61 | 0.18KW | 14.5kg | 5760N |
| RF38-Y0.18KW | 73.96 | 0.18KW | 14.5kg | 5840N |
| RF38-Y0.18KW | 69.33 | 0.18KW | 14.5kg | 5870N |
| RF38-Y0.18KW | 61.18 | 0.18KW | 14.5kg | 5920N |
| RF38-Y0.18KW | 55.76 | 0.18KW | 14.5kg | 5940N |
| RF38-Y0.18KW | 48.08 | 0.18KW | 14.5kg | 5960N |
RF38減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF38-Y0.25KW | 134.82 | 0.25KW | 18.5kg | 2630N |
| RF38-Y0.25KW | 123.66 | 0.25KW | 18.5kg | 4560N |
| RF38-Y0.25KW | 105.28 | 0.25KW | 18.5kg | 5030N |
| RF38-Y0.25KW | 90.77 | 0.25KW | 18.5kg | 5320N |
| RF38-Y0.25KW | 84.61 | 0.25KW | 18.5kg | 5420N |
| RF38-Y0.25KW | 73.96 | 0.25KW | 18.5kg | 5580N |
| RF38-Y0.25KW | 69.33 | 0.25KW | 18.5kg | 5650N |
| RF38-Y0.25KW | 61.18 | 0.25KW | 18.5kg | 5750N |
| RF38-Y0.25KW | 55.76 | 0.25KW | 18.5kg | 5800N |
| RF38-Y0.25KW | 48.08 | 0.25KW | 18.5kg | 5870N |
| RF38-Y0.25KW | 44.81 | 0.25KW | 18.5kg | 5760N |
| RF38-Y0.25KW | 39.17 | 0.25KW | 18.5kg | 5540N |
| RF38-Y0.25KW | 36.72 | 0.25KW | 18.5kg | 5430N |
| RF38-Y0.25KW | 32.4 | 0.25KW | 18.5kg | 5230N |
RF38減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF38-Y0.37KW | 90.77 | 0.37KW | 19kg | 4250N |
| RF38-Y0.37KW | 84.61 | 0.37KW | 19kg | 4720N |
| RF38-Y0.37KW | 73.96 | 0.37KW | 19kg | 5070N |
| RF38-Y0.37KW | 69.33 | 0.37KW | 19kg | 5210N |
| RF38-Y0.37KW | 61.18 | 0.37KW | 19kg | 5410N |
| RF38-Y0.37KW | 55.76 | 0.37KW | 19kg | 5530N |
| RF38-Y0.37KW | 48.08 | 0.37KW | 19kg | 5580N |
| RF38-Y0.37KW | 44.81 | 0.37KW | 19kg | 5480N |
| RF38-Y0.37KW | 39.17 | 0.37KW | 19kg | 5280N |
| RF38-Y0.37KW | 36.72 | 0.37KW | 19kg | 5190N |
| RF38-Y0.37KW | 32.40 | 0.37KW | 19kg | 5010N |
| RF38-Y0.37KW | 28.73 | 0.37KW | 19kg | 4850N |
| RF38-Y0.37KW | 24.42 | 0.37KW | 19kg | 4620N |
| RF38-Y0.37KW | 28.32 | 0.37KW | 19kg | 4830N |
| RF38-Y0.37KW | 26.03 | 0.37KW | 19kg | 4710N |
| RF38-Y0.37KW | 22.27 | 0.37KW | 19kg | 4500N |
| RF38-Y0.37KW | 19.31 | 0.37KW | 19kg | 4320N |
| RF38-Y0.37KW | 18.05 | 0.37KW | 19kg | 4230N |
| RF38-Y0.37KW | 15.60 | 0.37KW | 19kg | 4050N |
| RF38-Y0.37KW | 13.25 | 0.37KW | 19kg | 3850N |
| RF38-Y0.37KW | 11.83 | 0.37KW | 19kg | 3720N |
RF38減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF38-Y0.55KW | 61.18 | 0.55KW | 23.5kg | 4210N |
| RF38-Y0.55KW | 55.76 | 0.55KW | 23.5kg | 4780N |
| RF38-Y0.55KW | 48.08 | 0.55KW | 23.5kg | 5150N |
| RF38-Y0.55KW | 44.81 | 0.55KW | 23.5kg | 5220N |
| RF38-Y0.55KW | 39.17 | 0.55KW | 23.5kg | 5050N |
| RF38-Y0.55KW | 36.72 | 0.55KW | 23.5kg | 4980N |
| RF38-Y0.55KW | 32.4 | 0.55KW | 23.5kg | 4820N |
| RF38-Y0.55KW | 28.73 | 0.55KW | 23.5kg | 4680N |
| RF38-Y0.55KW | 24.42 | 0.55KW | 23.5kg | 4480N |
| RF38-Y0.55KW | 22.27 | 0.55KW | 23.5kg | 4370N |
| RF38-Y0.55KW | 19.31 | 0.55KW | 23.5kg | 4200N |
| RF38-Y0.55KW | 18.05 | 0.55KW | 23.5kg | 4120N |
| RF38-Y0.55KW | 15.6 | 0.55KW | 23.5kg | 3960N |
| RF38-Y0.55KW | 13.25 | 0.55KW | 23.5kg | 3780N |
| RF38-Y0.55KW | 11.83 | 0.55KW | 23.5kg | 3650N |
RF38減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF38-Y0.75KW | 48.08 | 0.75KW | 24.5kg | 3550N |
| RF38-Y0.75KW | 44.81 | 0.75KW | 24.5kg | 4480N |
| RF38-Y0.75KW | 39.17 | 0.75KW | 24.5kg | 4760N |
| RF38-Y0.75KW | 36.72 | 0.75KW | 24.5kg | 4700N |
| RF38-Y0.75KW | 32.40 | 0.75KW | 24.5kg | 4570N |
| RF38-Y0.75KW | 28.73 | 0.75KW | 24.5kg | 4450N |
| RF38-Y0.75KW | 24.42 | 0.75KW | 24.5kg | 4280N |
| RF38-Y0.75KW | 22.27 | 0.75KW | 24.5kg | 4180N |
| RF38-Y0.75KW | 19.31 | 0.75KW | 24.5kg | 4040N |
| RF38-Y0.75KW | 18.05 | 0.75KW | 24.5kg | 3960N |
| RF38-Y0.75KW | 15.60 | 0.75KW | 24.5kg | 3810N |
| RF38-Y0.75KW | 13.25 | 0.75KW | 24.5kg | 3650N |
| RF38-Y0.75KW | 11.83 | 0.75KW | 24.5kg | 3540N |
| RF38-Y0.75KW | 10.11 | 0.75KW | 24.5kg | 3380N |
| RF38-Y0.75KW | 9.47 | 0.75KW | 24.5kg | 3320N |
RF38減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF38-Y1.1KW | 32.40 | 1.1KW | 28.5kg | 2950N |
| RF38-Y1.1KW | 28.73 | 1.1KW | 28.5kg | 3340N |
| RF38-Y1.1KW | 24.42 | 1.1KW | 28.5kg | 3750N |
| RF38-Y1.1KW | 19.31 | 1.1KW | 28.5kg | 3830N |
| RF38-Y1.1KW | 18.05 | 1.1KW | 28.5kg | 3780N |
| RF38-Y1.1KW | 15.60 | 1.1KW | 28.5kg | 3650N |
| RF38-Y1.1KW | 13.25 | 1.1KW | 28.5kg | 3510N |
| RF38-Y1.1KW | 11.83 | 1.1KW | 28.5kg | 3410N |
| RF38-Y1.1KW | 10.11 | 1.1KW | 28.5kg | 3280N |
| RF38-Y1.1KW | 9.47 | 1.1KW | 28.5kg | 3220N |
| RF38-Y1.1KW | 7.97 | 1.1KW | 28.5kg | 3080N |
| RF38-Y1.1KW | 6.67 | 1.1KW | 28.5kg | 2910N |
| RF38-Y1.1KW | 5.67 | 1.1KW | 28.5kg | 2780N |
| RF38-Y1.1KW | 5.06 | 1.1KW | 28.5kg | 2690N |
RF38減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF38-Y1.5KW | 19.31 | 1.5KW | 31.5kg | 2700N |
| RF38-Y1.5KW | 18.05 | 1.5KW | 31.5kg | 2880N |
| RF38-Y1.5KW | 15.60 | 1.5KW | 31.5kg | 3190N |
| RF38-Y1.5KW | 13.25 | 1.5KW | 31.5kg | 3340N |
| RF38-Y1.5KW | 11.83 | 1.5KW | 31.5kg | 3260N |
| RF38-Y1.5KW | 10.11 | 1.5KW | 31.5kg | 3140N |
| RF38-Y1.5KW | 9.47 | 1.5KW | 31.5kg | 3100N |
| RF38-Y1.5KW | 7.97 | 1.5KW | 31.5kg | 2970N |
| RF38-Y1.5KW | 6.67 | 1.5KW | 31.5kg | 2810N |
| RF38-Y1.5KW | 5.67 | 1.5KW | 31.5kg | 2700N |
| RF38-Y1.5KW | 5.06 | 1.5KW | 31.5kg | 2620N |
| RF38-Y1.5KW | 4.32 | 1.5KW | 31.5kg | 2510N |
| RF38-Y1.5KW | 4.05 | 1.5KW | 31.5kg | 2460N |
| RF38-Y1.5KW | 3.41 | 1.5KW | 31.5kg | 2350N |
RF38減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF38-Y2.2KW | 15.06 | 2.2KW | 40.5kg | 1110N |
| RF38-Y2.2KW | 13.25 | 2.2KW | 40.5kg | 1690N |
| RF38-Y2.2KW | 11.83 | 2.2KW | 40.5kg | 2010N |
| RF38-Y2.2KW | 10.11 | 2.2KW | 40.5kg | 2380N |
| RF38-Y2.2KW | 9.47 | 2.2KW | 40.5kg | 2500N |
| RF38-Y2.2KW | 7.97 | 2.2KW | 40.5kg | 2760N |
| RF38-Y2.2KW | 6.67 | 2.2KW | 40.5kg | 2480N |
| RF38-Y2.2KW | 5.67 | 2.2KW | 40.5kg | 2560N |
| RF38-Y2.2KW | 5.06 | 2.2KW | 40.5kg | 2500N |
| RF38-Y2.2KW | 4.32 | 2.2KW | 40.5kg | 2400N |
| RF38-Y2.2KW | 4.05 | 2.2KW | 40.5kg | 2370N |
| RF38-Y2.2KW | 3.41 | 2.2KW | 40.5kg | 2270N |
RF38減速機配3KW電機參數
| 型號 | 減速比 | 功率 | 重量 | 力矩 |
| RF38-Y3KW | 10.11 | 3KW | 43.5kg | 920N |
| RF38-Y3KW | 9.47 | 3KW | 43.5kg | 1130N |
| RF38-Y3KW | 7.97 | 3KW | 43.5kg | 1610N |
| RF38-Y3KW | 6.67 | 3KW | 43.5kg | 1350N |
| RF38-Y3KW | 5.67 | 3KW | 43.5kg | 1700N |
| RF38-Y3KW | 5.06 | 3KW | 43.5kg | 1900N |
| RF38-Y3KW | 4.32 | 3KW | 43.5kg | 2110N |
| RF38-Y3KW | 4.05 | 3KW | 43.5kg | 2180N |
| RF38-Y3KW | 3.41 | 3KW | 43.5kg | 2160N |
RF38減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：R38減速機
關鍵詞:GRF系列減速機立式一體式_直線輸出減速機配電機_RF系列減速器_直連電機減速機_直連減速機_直連減速器_直聯減速機_RF系列減速機_RF型減速機_RF齒輪減速馬達
RF系列減速機型號：RF18減速機,RF28減速機,RF38減速機,RF48減速機,RF58減速機,RF68減速機,RF78減速機,RF88減速機,RF98減速機,RF108減速機,RF138減速機,RF148減速機,RF168減速機
RF系列斜齒輪減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: RF38減速電機 RF37斜齒輪硬齒面減速機 RF37減速機功率 RF37減速機基座尺寸 RF37減速機模型 RF37減速機型號參數
