K68R38減速機詳細信息
K68R38減速機
K68R38減速機電機功率：K68R38Y0.12KW減速機,K68R38Y0.18KW減速機,K68R38Y0.25KW減速機,K68R38Y0.37KW減速機,K68R38Y0.55KW減速機（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。
K68R38減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K68R38-Y0.12KW | 1351 | 0.12KW | 1.00r/min | 960N.m | 47kg | 6940N | 0.85 |
| K68R38-Y0.12KW | 1171 | 0.12KW | 1.20r/min | 820N.m | 47kg | 10300N | 1.00 |
| K68R38-Y0.12KW | 1034 | 0.12KW | 1.30r/min | 720N.m | 47kg | 11100N | 1.15 |
| K68R38-Y0.12KW | 903 | 0.12KW | 1.50r/min | 600N.m | 47kg | 11900N | 1.35 |
| K68R38-Y0.12KW | 793 | 0.12KW | 1.70r/min | 570N.m | 47kg | 12100N | 1.45 |
| K68R38-Y0.12KW | 697 | 0.12KW | 2.00r/min | 455N.m | 47kg | 12600N | 1.80 |
| K68R38-Y0.12KW | 613 | 0.12KW | 2.20r/min | 400N.m | 47kg | 12800N | 2.00 |
| K68R38-Y0.12KW | 542 | 0.12KW | 2.60r/min | 350N.m | 47kg | 13000N | 2.30 |
| K68R38-Y0.12KW | 471 | 0.12KW | 2.90r/min | 325N.m | 47kg | 13000N | 2.50 |
| K68R38-Y0.12KW | 420 | 0.12KW | 3.30r/min | 270N.m | 47kg | 13000N | 3.00 |
| K68R38-Y0.12KW | 361 | 0.12KW | 3.80r/min | 245N.m | 47kg | 13000N | 3.30 |
| K68R38-Y0.12KW | 323 | 0.12KW | 4.30r/min | 215N.m | 47kg | 13000N | 3.80 |
| K68R38-Y0.12KW | 279 | 0.12KW | 5.00r/min | 181N.m | 47kg | 13000N | 4.50 |
| K68R38-Y0.12KW | 246 | 0.12KW | 5.60r/min | 159N.m | 47kg | 13000N | 5.20 |
| K68R38-Y0.12KW | 217 | 0.12KW | 6.40r/min | 139N.m | 47kg | 13000N | 5.90 |
K68R38減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K68R38-Y0.18KW | 793 | 0.18KW | 1.70r/min | 920N.m | 47.5kg | 9240N | 0.90 |
| K68R38-Y0.18KW | 697 | 0.18KW | 1.90r/min | 760N.m | 47.5kg | 10800N | 1.05 |
| K68R38-Y0.18KW | 613 | 0.18KW | 2.20r/min | 670N.m | 47.5kg | 11500N | 1.20 |
| K68R38-Y0.18KW | 542 | 0.18KW | 2.40r/min | 590N.m | 47.5kg | 12000N | 1.40 |
| K68R38-Y0.18KW | 471 | 0.18KW | 2.80r/min | 535N.m | 47.5kg | 12200N | 1.50 |
| K68R38-Y0.18KW | 420 | 0.18KW | 3.20r/min | 455N.m | 47.5kg | 12600N | 1.80 |
| K68R38-Y0.18KW | 361 | 0.18KW | 3.60r/min | 405N.m | 47.5kg | 12800N | 2.00 |
| K68R38-Y0.18KW | 323 | 0.18KW | 4.10r/min | 360N.m | 47.5kg | 12900N | 2.30 |
| K68R38-Y0.18KW | 279 | 0.18KW | 4.70r/min | 300N.m | 47.5kg | 13000N | 2.70 |
K68R38減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K68R38-Y0.25KW | 613 | 0.25KW | 2.10r/min | 970N.m | 51.5kg | 5680N | 0.85 |
| K68R38-Y0.25KW | 542 | 0.25KW | 2.40r/min | 860N.m | 51.5kg | 9920N | 0.95 |
| K68R38-Y0.25KW | 471 | 0.25KW | 2.80r/min | 775N.m | 51.5kg | 10700N | 1.05 |
| K68R38-Y0.25KW | 420 | 0.25KW | 3.10r/min | 665N.m | 51.5kg | 11500N | 1.25 |
| K68R38-Y0.25KW | 361 | 0.25KW | 3.60r/min | 590N.m | 51.5kg | 11900N | 1.4 |
| K68R38-Y0.25KW | 323 | 0.25KW | 4.00r/min | 520N.m | 51.5kg | 12300N | 1.55 |
| K68R38-Y0.25KW | 279 | 0.25KW | 4.70r/min | 440N.m | 51.5kg | 12600N | 1.85 |
| K68R38-Y0.25KW | 246 | 0.25KW | 5.30r/min | 390N.m | 51.5kg | 12800N | 2.10 |
| K68R38-Y0.25KW | 217 | 0.25KW | 6.00r/min | 345N.m | 51.5kg | 13000N | 2.40 |
K68R38減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K68R38-Y0.37KW | 420 | 0.37KW | 3.30r/min | 940N.m | 52kg | 8130N | 0.85 |
| K68R38-Y0.37KW | 361 | 0.37KW | 3.80r/min | 830N.m | 52kg | 10200N | 1.00 |
| K68R38-Y0.37KW | 323 | 0.37KW | 4.30r/min | 740N.m | 52kg | 10900N | 1.10 |
| K68R38-Y0.37KW | 279 | 0.37KW | 5.00r/min | 630N.m | 52kg | 11700N | 1.30 |
| K68R38-Y0.37KW | 246 | 0.37KW | 5.60r/min | 555N.m | 52kg | 12100N | 1.50 |
| K68R38-Y0.37KW | 191 | 0.37KW | 7.20r/min | 430N.m | 52kg | 12700N | 1.90 |
| K68R38-Y0.37KW | 166 | 0.37KW | 8.30r/min | 370N.m | 52kg | 12900N | 2.20 |
| K68R38-Y0.37KW | 144 | 0.37KW | 9.60r/min | 325N.m | 52kg | 13000N | 2.50 |
| K68R38-Y0.37KW | 122 | 0.37KW | 11.0r/min | 275N.m | 52kg | 13000N | 2.90 |
K68R38減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| K68R38-Y0.55KW | 279 | 0.55KW | 5.00r/min | 950N.m | 56.5kg | 7650N | 0.85 |
| K68R38-Y0.55KW | 246 | 0.55KW | 5.60r/min | 840N.m | 56.5kg | 10100N | 0.95 |
| K68R38-Y0.55KW | 217 | 0.55KW | 6.40r/min | 745N.m | 56.5kg | 10900N | 1.10 |
| K68R38-Y0.55KW | 191 | 0.55KW | 7.20r/min | 655N.m | 56.5kg | 11600N | 1.25 |
K68R38減速器減速比：122比齒輪減速馬達,144比減速器,166比減速器,191比減速器,217比減速器,246比減速器,279比減速器,323比減速器,361比減速器,420比減速器,471比減速器,542比減速器,543比減速器,613比減速器,697比減速器,793比減速器,903比減速器,1034比減速器,1171比減速器,1351比減速器。
K68R38減速機電機安裝尺寸：輸出軸+鍵Φ43（可定做），高228*寬256（帶輸出軸）*長426
K68R38減速電機輸出轉數：1轉減速電機,1.2轉減速電機,1.3轉減速電機,1.5轉減速電機,1.7轉減速電機,1.9轉減速電機,2轉減速電機,2.1轉減速電機,2.2轉減速電機,2.4轉減速電機,2.6轉減速電機,2.8轉減速電機,2.9轉減速電機,3.1轉減速電機,3.2轉減速電機,3.3轉減速電機,3.6轉減速電機,3.8轉減速電機,4轉直角減速機,4.3轉減速電機,4.7轉減速電機,5轉減速電機,5.3轉減速電機,5.6轉減速電機,6轉減速電機,6.4轉減速電機,7.2轉減速電機,8.3轉減速電機,9.6轉減速電機,11轉減速電機。中孔直角減速機
K68R38減速箱電機輸出扭矩：139N.m減速箱,159N.m減速箱,181N.m減速箱,215N.m減速箱,245N.m減速箱,270N.m減速箱,275N.m減速箱,325N.m減速箱,345N.m減速箱,350N.m減速箱,370N.m減速箱,390N.m減速箱,400N.m減速箱,430N.m減速箱,440N.m減速箱,455N.m減速箱,520N.m減速箱,535N.m減速箱,555N.m減速箱,570N.m減速箱,590N.m減速箱,600N.m減速箱,630N.m減速箱,655N.m減速箱,665N.m減速箱,670N.m減速箱,720N.m減速箱,740N.m減速箱,745N.m減速箱,760N.m減速箱,775N.m減速箱,820N.m減速箱,830N.m減速箱,840N.m減速箱,860N.m減速箱,920N.m減速箱,940N.m減速箱,950N.m減速箱,960N.m減速箱,970N.m減速箱。

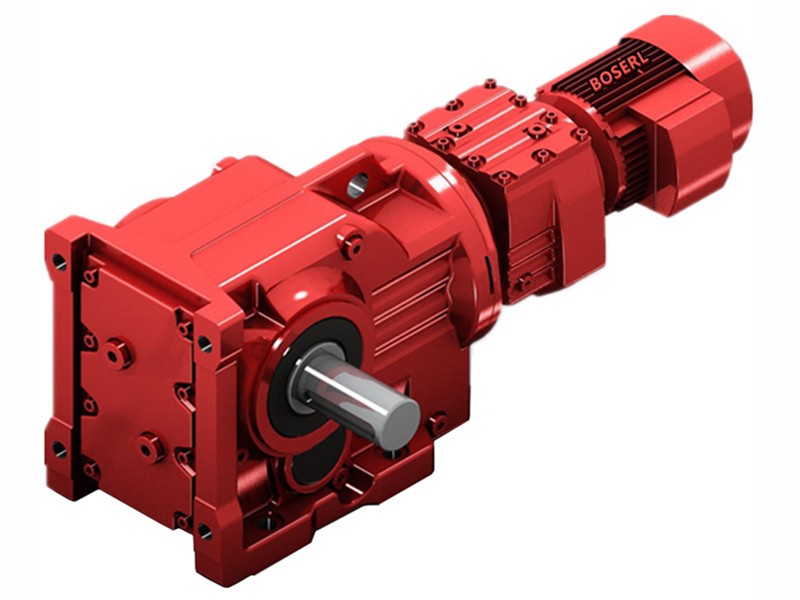

K68R38減速機電機各種輸出實物圖：
K68R38減速馬達型號：
KHZ67R37DM63L4,KHZ67R37DM63M4,KHZ67R37DM63MS4,KHZ67R37DM63S4,KHZ67R37DM71D4,KHZ67R37DM71M4,KHZ67R37DM71MS4,KHZ67R37DM71S4,KHZ67R37DM80K4,KHZ67R37DM80M4,KHZ67R37DM80MK4,KHZ67R37DM80N4,KHZ67R37DM80S4,KHZ67R37DM90L4,KHZ67R37DM90M4,KHZ67R37DM90S4,KHZ67R37DR63L4,KHZ67R37DR63M4,KHZ67R37DR63MS4,KHZ67R37DR63S4,KHZ67R37DR71D4,KHZ67R37DR71M4,KHZ67R37DR71MS4,KHZ67R37DR71S4,KHZ67R37DR80K4,KHZ67R37DR80M4,KHZ67R37DR80MK4,KHZ67R37DR80N4,KHZ67R37DR80S4,KHZ67R37DR90L4,KHZ67R37DR90M4,KHZ67R37DR90S4,KHZ67R37DRE63L4,KHZ67R37DRE63M4,KHZ67R37DRE63MS4,KHZ67R37DRE63S4,KHZ67R37DRE71D4,KHZ67R37DRE71M4,KHZ67R37DRE71MS4,KHZ67R37DRE71S4,KHZ67R37DRE80K4,KHZ67R37DRE80M4,KHZ67R37DRE80MK4,KHZ67R37DRE80N4,KHZ67R37DRE80S4,KHZ67R37DRE90L4,KHZ67R37DRE90M4,KHZ67R37DRE90S4,KHZ67R37DRN63L4,KHZ67R37DRN63M4,KHZ67R37DRN63MS4,KHZ67R37DRN63S4,KHZ67R37DRN71D4,KHZ67R37DRN71M4,KHZ67R37DRN71MS4,KHZ67R37DRN71S4,KHZ67R37DRN80K4,KHZ67R37DRN80M4,KHZ67R37DRN80MK4,KHZ67R37DRN80N4,KHZ67R37DRN80S4,KHZ67R37DRN90L4,KHZ67R37DRN90M4,KHZ67R37DRN90S4,KHZ67R37DRS63L4,KHZ67R37DRS63M4,KHZ67R37DRS63MS4,KHZ67R37DRS63S4,KHZ67R37DRS71D4,KHZ67R37DRS71M4,KHZ67R37DRS71MS4,KHZ67R37DRS71S4,KHZ67R37DRS80K4,KHZ67R37DRS80M4,KHZ67R37DRS80MK4,KHZ67R37DRS80N4,KHZ67R37DRS80S4,KHZ67R37DRS90L4,KHZ67R37DRS90M4,KHZ67R37DRS90S4,KHZ67R37DT63L4,KHZ67R37DT63M4,KHZ67R37DT63MS4,KHZ67R37DT63S4,KHZ67R37DT71D4,KHZ67R37DT71M4,KHZ67R37DT71MS4,KHZ67R37DT71S4,KHZ67R37DT80K4,KHZ67R37DT80M4,KHZ67R37DT80MK4,KHZ67R37DT80N4,KHZ67R37DT80S4,KHZ67R37DT90L4,KHZ67R37DT90M4,KHZ67R37DT90S4,KHZ67R37DV63L4,KHZ67R37DV63M4,KHZ67R37DV63MS4,KHZ67R37DV63S4,KHZ67R37DV71D4,KHZ67R37DV71M4,KHZ67R37DV71MS4,KHZ67R37DV71S4,KHZ67R37DV80K4,KHZ67R37DV80M4,KHZ67R37DV80MK4,KHZ67R37DV80N4,KHZ67R37DV80S4,KHZ67R37DV90L4,KHZ67R37DV90M4,KHZ67R37DV90S4,KHZ67R37DVE63L4,KHZ67R37DVE63M4,KHZ67R37DVE63MS4,KHZ67R37DVE63S4,KHZ67R37DVE71D4,KHZ67R37DVE71M4,KHZ67R37DVE71MS4,KHZ67R37DVE71S4,KHZ67R37DVE80K4,KHZ67R37DVE80M4,KHZ67R37DVE80MK4,KHZ67R37DVE80N4,KHZ67R37DVE80S4,KHZ67R37DVE90L4,KHZ67R37DVE90M4,KHZ67R37DVE90S4,KHZ67RF37-Y0.12KW,KHZ67RF37-Y0.12KW,KHZ67RF37-Y0.12KW,KHZ67RF37-Y0.12KW,KHZ67RF37-Y0.18KW,KHZ67RF37-Y0.18KW,KHZ67RF37-Y0.18KW,KHZ67RF37-Y0.18KW,KHZ67RF37-Y0.25KW,KHZ67RF37-Y0.25KW,KHZ67RF37-Y0.25KW,KHZ67RF37-Y0.25KW,KHZ67RF37-Y0.37KW,KHZ67RF37-Y0.37KW,KHZ67RF37-Y0.37KW,KHZ67RF37-Y0.37KW,KHZ67RF37-Y0.55KW,KHZ67RF37-Y0.55KW,KHZ67RF37-Y0.55KW,KHZ67RF37-Y0.55KW,KHZ67RF37-Y0.75KW,KHZ67RF37-Y0.75KW,KHZ67RF37-Y0.75KW,KHZ67RF37-Y0.75KW,KHZ67RF37-Y1.1KW,KHZ67RF37-Y1.1KW,KHZ67RF37-Y1.1KW,KHZ67RF37-Y1.1KW,KHZ67RF37-Y1.5KW,KHZ67RF37-Y1.5KW,KHZ67RF37-Y1.5KW,KHZ67RF37-Y1.5KW,KHZ67RF37-Y63M4,KHZ67RF37-Y71M4,KHZ67RF37-Y80M4,KHZ67RF37-Y90M4,KHZ67RF37-YEJ63M4,KHZ67RF37-YEJ71M4,KHZ67RF37-YEJ80M4,KHZ67RF37-YEJ90S4,KHZ67RF37-YVP63M4,KHZ67RF37-YVP71M4,KHZ67RF37-YVP80M4,KHZ67RF37-YVP90S4,KHZ67RF37-YVPEJ63M4,KHZ67RF37-YVPEJ71M4,KHZ67RF37-YVPEJ80M4,KHZ67RF37-YVPEJ90S4,KVZ67R37DM63L4,KVZ67R37DM63M4,KVZ67R37DM63MS4,KVZ67R37DM63S4,KVZ67R37DM71D4,KVZ67R37DM71M4,KVZ67R37DM71MS4,KVZ67R37DM71S4,KVZ67R37DM80K4,KVZ67R37DM80M4,KVZ67R37DM80MK4,KVZ67R37DM80N4,KVZ67R37DM80S4,KVZ67R37DM90L4,KVZ67R37DM90M4,KVZ67R37DM90S4,KVZ67R37DR63L4,KVZ67R37DR63M4,KVZ67R37DR63MS4,KVZ67R37DR63S4,KVZ67R37DR71D4,KVZ67R37DR71M4,KVZ67R37DR71MS4,KVZ67R37DR71S4,KVZ67R37DR80K4,KVZ67R37DR80M4,KVZ67R37DR80MK4,KVZ67R37DR80N4,KVZ67R37DR80S4,KVZ67R37DR90L4,KVZ67R37DR90M4,KVZ67R37DR90S4,KVZ67R37DRE63L4,KVZ67R37DRE63M4,KVZ67R37DRE63MS4,KVZ67R37DRE63S4,KVZ67R37DRE71D4,KVZ67R37DRE71M4,KVZ67R37DRE71MS4,KVZ67R37DRE71S4,KVZ67R37DRE80K4,KVZ67R37DRE80M4,KVZ67R37DRE80MK4,KVZ67R37DRE80N4,KVZ67R37DRE80S4,KVZ67R37DRE90L4,KVZ67R37DRE90M4,KVZ67R37DRE90S4,KVZ67R37DRN63L4,KVZ67R37DRN63M4,KVZ67R37DRN63MS4,KVZ67R37DRN63S4,KVZ67R37DRN71D4,KVZ67R37DRN71M4,KVZ67R37DRN71MS4,KVZ67R37DRN71S4,KVZ67R37DRN80K4,KVZ67R37DRN80M4,KVZ67R37DRN80MK4,KVZ67R37DRN80N4,KVZ67R37DRN80S4,KVZ67R37DRN90L4,KVZ67R37DRN90M4,KVZ67R37DRN90S4,KVZ67R37DRS63L4,KVZ67R37DRS63M4,KVZ67R37DRS63MS4,KVZ67R37DRS63S4,KVZ67R37DRS71D4,KVZ67R37DRS71M4,KVZ67R37DRS71MS4,KVZ67R37DRS71S4,KVZ67R37DRS80K4,KVZ67R37DRS80M4,KVZ67R37DRS80MK4,KVZ67R37DRS80N4,KVZ67R37DRS80S4,KVZ67R37DRS90L4,KVZ67R37DRS90M4,KVZ67R37DRS90S4,KVZ67R37DT63L4,KVZ67R37DT63M4,KVZ67R37DT63MS4,KVZ67R37DT63S4,KVZ67R37DT71D4,KVZ67R37DT71M4,KVZ67R37DT71MS4,KVZ67R37DT71S4,KVZ67R37DT80K4,KVZ67R37DT80M4,KVZ67R37DT80MK4,KVZ67R37DT80N4,KVZ67R37DT80S4,KVZ67R37DT90L4,KVZ67R37DT90M4,KVZ67R37DT90S4,KVZ67R37DV63L4,KVZ67R37DV63M4,KVZ67R37DV63MS4,KVZ67R37DV63S4,KVZ67R37DV71D4,KVZ67R37DV71M4,KVZ67R37DV71MS4,KVZ67R37DV71S4,KVZ67R37DV80K4,KVZ67R37DV80M4,KVZ67R37DV80MK4,KVZ67R37DV80N4,KVZ67R37DV80S4,KVZ67R37DV90L4,KVZ67R37DV90M4,KVZ67R37DV90S4,KVZ67R37DVE63L4,KVZ67R37DVE63M4,KVZ67R37DVE63MS4,KVZ67R37DVE63S4,KVZ67R37DVE71D4,KVZ67R37DVE71M4,KVZ67R37DVE71MS4,KVZ67R37DVE71S4,KVZ67R37DVE80K4,KVZ67R37DVE80M4,KVZ67R37DVE80MK4,KVZ67R37DVE80N4,KVZ67R37DVE80S4,KVZ67R37DVE90L4,KVZ67R37DVE90M4,KVZ67R37DVE90S4,KVZ67RF37-Y0.12KW,KVZ67RF37-Y0.12KW,KVZ67RF37-Y0.12KW,KVZ67RF37-Y0.12KW,KVZ67RF37-Y0.18KW,KVZ67RF37-Y0.18KW,KVZ67RF37-Y0.18KW,KVZ67RF37-Y0.18KW,KVZ67RF37-Y0.25KW,KVZ67RF37-Y0.25KW,KVZ67RF37-Y0.25KW,KVZ67RF37-Y0.25KW,KVZ67RF37-Y0.37KW,KVZ67RF37-Y0.37KW,KVZ67RF37-Y0.37KW,KVZ67RF37-Y0.37KW,KVZ67RF37-Y0.55KW,KVZ67RF37-Y0.55KW,KVZ67RF37-Y0.55KW,KVZ67RF37-Y0.55KW,KVZ67RF37-Y0.75KW,KVZ67RF37-Y0.75KW,KVZ67RF37-Y0.75KW,KVZ67RF37-Y0.75KW,KVZ67RF37-Y1.1KW,KVZ67RF37-Y1.1KW,KVZ67RF37-Y1.1KW,KVZ67RF37-Y1.1KW,KVZ67RF37-Y1.5KW,KVZ67RF37-Y1.5KW,KVZ67RF37-Y1.5KW,KVZ67RF37-Y1.5KW,KVZ67RF37-Y63M4,KVZ67RF37-Y71M4,KVZ67RF37-Y80M4,KVZ67RF37-Y90M4,KVZ67RF37-YEJ63M4,KVZ67RF37-YEJ71M4,KVZ67RF37-YEJ80M4,KVZ67RF37-YEJ90S4,KVZ67RF37-YVP63M4,KVZ67RF37-YVP71M4,KVZ67RF37-YVP80M4,KVZ67RF37-YVP90S4,KVZ67RF37-YVPEJ63M4,KVZ67RF37-YVPEJ71M4,KVZ67RF37-YVPEJ80M4,KVZ67RF37-YVPEJ90S4,KAZ67R37DM63L4,KAZ67R37DM63M4,KAZ67R37DM63MS4,KAZ67R37DM63S4,KAZ67R37DM71D4,KAZ67R37DM71M4,KAZ67R37DM71MS4,KAZ67R37DM71S4,KAZ67R37DM80K4,KAZ67R37DM80M4,KAZ67R37DM80MK4,KAZ67R37DM80N4,KAZ67R37DM80S4,KAZ67R37DM90L4,KAZ67R37DM90M4,KAZ67R37DM90S4,KAZ67R37DR63L4,KAZ67R37DR63M4,KAZ67R37DR63MS4,KAZ67R37DR63S4,KAZ67R37DR71D4,KAZ67R37DR71M4,KAZ67R37DR71MS4,KAZ67R37DR71S4,KAZ67R37DR80K4,KAZ67R37DR80M4,KAZ67R37DR80MK4,KAZ67R37DR80N4,KAZ67R37DR80S4,KAZ67R37DR90L4,KAZ67R37DR90M4,KAZ67R37DR90S4,KAZ67R37DRE63L4,KAZ67R37DRE63M4,KAZ67R37DRE63MS4,KAZ67R37DRE63S4,KAZ67R37DRE71D4,KAZ67R37DRE71M4,KAZ67R37DRE71MS4,KAZ67R37DRE71S4,KAZ67R37DRE80K4,KAZ67R37DRE80M4,KAZ67R37DRE80MK4,KAZ67R37DRE80N4,KAZ67R37DRE80S4,KAZ67R37DRE90L4,KAZ67R37DRE90M4,KAZ67R37DRE90S4,KAZ67R37DRN63L4,KAZ67R37DRN63M4,KAZ67R37DRN63MS4,KAZ67R37DRN63S4,KAZ67R37DRN71D4,KAZ67R37DRN71M4,KAZ67R37DRN71MS4,KAZ67R37DRN71S4,KAZ67R37DRN80K4,KAZ67R37DRN80M4,KAZ67R37DRN80MK4,KAZ67R37DRN80N4,KAZ67R37DRN80S4,KAZ67R37DRN90L4,KAZ67R37DRN90M4,KAZ67R37DRN90S4,KAZ67R37DRS63L4,KAZ67R37DRS63M4,KAZ67R37DRS63MS4,KAZ67R37DRS63S4,KAZ67R37DRS71D4,KAZ67R37DRS71M4,KAZ67R37DRS71MS4,KAZ67R37DRS71S4,KAZ67R37DRS80K4,KAZ67R37DRS80M4,KAZ67R37DRS80MK4,KAZ67R37DRS80N4,KAZ67R37DRS80S4,KAZ67R37DRS90L4,KAZ67R37DRS90M4,KAZ67R37DRS90S4,KAZ67R37DT63L4,KAZ67R37DT63M4,KAZ67R37DT63MS4,KAZ67R37DT63S4,KAZ67R37DT71D4,KAZ67R37DT71M4,KAZ67R37DT71MS4,KAZ67R37DT71S4,KAZ67R37DT80K4,KAZ67R37DT80M4,KAZ67R37DT80MK4,KAZ67R37DT80N4,KAZ67R37DT80S4,KAZ67R37DT90L4,KAZ67R37DT90M4,KAZ67R37DT90S4,KAZ67R37DV63L4,KAZ67R37DV63M4,KAZ67R37DV63MS4,KAZ67R37DV63S4,KAZ67R37DV71D4,KAZ67R37DV71M4,KAZ67R37DV71MS4,KAZ67R37DV71S4,KAZ67R37DV80K4,KAZ67R37DV80M4,KAZ67R37DV80MK4,KAZ67R37DV80N4,KAZ67R37DV80S4,KAZ67R37DV90L4,KAZ67R37DV90M4,KAZ67R37DV90S4,KAZ67R37DVE63L4,KAZ67R37DVE63M4,KAZ67R37DVE63MS4,KAZ67R37DVE63S4,KAZ67R37DVE71D4,KAZ67R37DVE71M4,KAZ67R37DVE71MS4,KAZ67R37DVE71S4,KAZ67R37DVE80K4,KAZ67R37DVE80M4,KAZ67R37DVE80MK4,KAZ67R37DVE80N4,KAZ67R37DVE80S4,KAZ67R37DVE90L4,KAZ67R37DVE90M4,KAZ67R37DVE90S4,KAZ67RF37-Y0.12KW,KAZ67RF37-Y0.12KW,KAZ67RF37-Y0.12KW,KAZ67RF37-Y0.12KW,KAZ67RF37-Y0.18KW,KAZ67RF37-Y0.18KW,KAZ67RF37-Y0.18KW,KAZ67RF37-Y0.18KW,KAZ67RF37-Y0.25KW,KAZ67RF37-Y0.25KW,KAZ67RF37-Y0.25KW,KAZ67RF37-Y0.25KW,KAZ67RF37-Y0.37KW,KAZ67RF37-Y0.37KW,KAZ67RF37-Y0.37KW,KAZ67RF37-Y0.37KW,KAZ67RF37-Y0.55KW,KAZ67RF37-Y0.55KW,KAZ67RF37-Y0.55KW,KAZ67RF37-Y0.55KW,KAZ67RF37-Y0.75KW,KAZ67RF37-Y0.75KW,KAZ67RF37-Y0.75KW,KAZ67RF37-Y0.75KW,KAZ67RF37-Y1.1KW,KAZ67RF37-Y1.1KW,KAZ67RF37-Y1.1KW,KAZ67RF37-Y1.1KW,KAZ67RF37-Y1.5KW,KAZ67RF37-Y1.5KW,KAZ67RF37-Y1.5KW,KAZ67RF37-Y1.5KW,KAZ67RF37-Y63M4,KAZ67RF37-Y71M4,KAZ67RF37-Y80M4,KAZ67RF37-Y90M4,KAZ67RF37-YEJ63M4,KAZ67RF37-YEJ71M4,KAZ67RF37-YEJ80M4,KAZ67RF37-YEJ90S4,KAZ67RF37-YVP63M4,KAZ67RF37-YVP71M4,KAZ67RF37-YVP80M4,KAZ67RF37-YVP90S4,KAZ67RF37-YVPEJ63M4,KAZ67RF37-YVPEJ71M4,KAZ67RF37-YVPEJ80M4,KAZ67RF37-YVPEJ90S4。
K68R38減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.szweilun.cn/product/list-kxiliejiansuji-cn.html
推薦型號：K68減速機
關鍵詞:GK型減速機配電機一體式_螺旋錐齒輪減速器_K系列減速機_雙出軸減速機_90度減速機_螺旋錐齒輪減速機_GK系列減速機_K系列減速器_雙出軸減速器_90度減速器
K系列齒輪減速馬達型號：K38減速機,K48減速機,K58減速機,K68減速機,K78減速機,K88減速機,K98減速機,K108減速機,K128減速機,K158減速機,K168減速機,K188減速機
K系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: KHZ67R37 KVZ67R37 KAZ67R37
- 上一條K58R38減速機
- 下一條K78R38減速機
