R78減速機傳動比計算：齒輪減速馬達

輸送帶參數：輪子直徑160，負載3.5噸，一分鐘走20米

20米÷（0.16輪子直徑×3.14）=39.8轉每分鐘

3.5噸換算成N=35000N

35000×0.08輪子半徑×0.06摩擦系數=168N.m

通常確保萬無一失，我們會把輸出扭矩放大兩倍168×2=336N.m

電機轉數1400÷輸出轉數39.8=35.17比

336N.m輸出扭矩÷35.17比=9.55N.m電機扭矩

9.55N.m電機扭矩?fù)Q算成功率1.51KW以上

對應的R78減速機選型參數：

型號：R78-B1.5KW

減速比：36.83

輸出轉數：39轉每分鐘

輸出扭矩：365N.m

安全系數：2.20

R78減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）R系列減速機

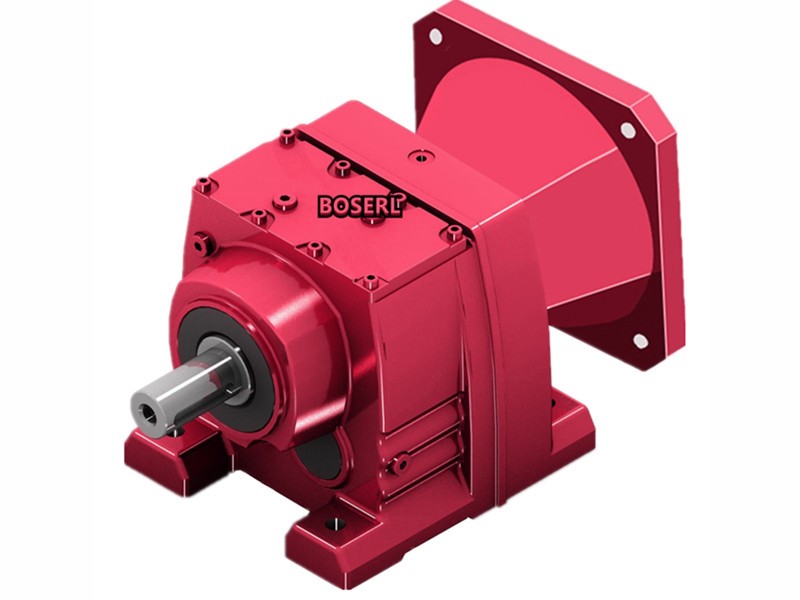

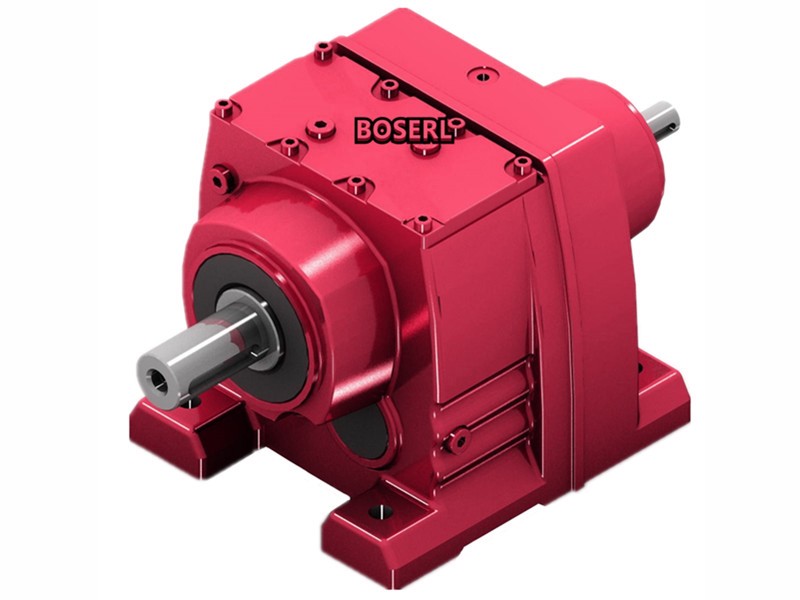

R78臥式硬齒面斜齒輪減速機型號：
